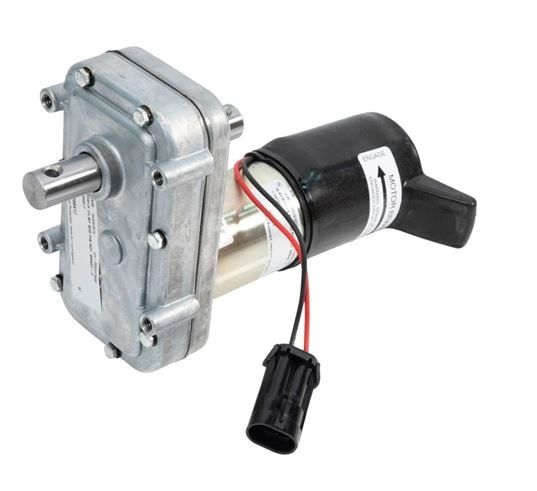

Lippert Components 368417 Slide-Out Motor Assembly

Lippert Components 368417 Slide-Out Motor Assembly Lippert 368417 (Power Gear # 1010000010) Gear Motor DS MT Without Pin Rot. Brake-B provides a smooth slide-out process and is easily hidden in storage compartments, creating optimized space! Cast aluminum gear housing and motor end cap with steel motor frame 12 VDC electro-mechanical brake on rear of motor with manual release lever Rotation Reversible Duty Intermittent Speed: 6 RPM @ 850 in-lbs, 25 Amps 10 RPM at 400 in-lbs, 13 Amps 12 RPM (no load) Voltage: 12 DC Torque: 850 in-lbs Holding Torque: 500 in-lbs. Dimensions: 9-1/4″ x 3-7/8″ x 6-1/4″ Sold individually Limited 1 year manufacturer warranty
